Magnetic Probabilistic Computing: A Deep Technical Analysis

Executive Summary

Magnetic probabilistic computing represents a paradigm shift in AI hardware, leveraging the inherent stochasticity of nanoscale magnetic devices to perform computations that are fundamentally different from conventional deterministic approaches. This comprehensive analysis examines seven critical device categories that are shaping the future of probabilistic AI systems.

              Key Findings
              Stochastic Magnetic Tunnel Junctions (sMTJs) lead in p-bit implementation with microsecond fluctuation speeds
Spin Torque Nano-Oscillators show promise for GHz-frequency neuromorphic computing
Domain-wall devices achieve remarkable energy efficiency of 36.3 fJ/pulse
Skyrmion-based reshufflers offer novel probabilistic computing paradigms



              Critical Challenges
              Scalability limitations in large-scale array integration
Device-to-device variability affecting system reliability
Lack of standardized benchmarking frameworks
Gap between device demonstration and system-level implementation



1. Stochastic Magnetic Tunnel Junctions (sMTJs)

State-of-the-Art

Stochastic Magnetic Tunnel Junctions are emerging as promising candidates for unconventional computing paradigms, particularly in neuromorphic and stochastic computing, due to their inherent stochasticity and compatibility with CMOS technology [1].

"sMTJ-based p-bits have demonstrated potential in solving complex optimization problems and performing probabilistic inference, with recent advancements showing fluctuation at microsecond timescales."

Utilized as probabilistic bits (p-bits) for Boltzmann Machines, Bayesian Networks, and Ising Machines [1]
Proof-of-concept spintronic probabilistic computers built by interfacing sMTJ-based p-bit units with FPGAs [192] [203]
Integration with CMOS in 130nm technology through ASIC interfaces [188]
AI-guided frameworks optimizing MTJ designs for specific probability distributions [191] [193]

Research Gaps

Trade-off between switching speed and energy barrier - Fast switching requires small energy barriers, complicating circuit design [1]
Non-uniformity in large arrays - Manufacturing variations impact energy barriers and system reliability [1]
Correlation and quality of randomness - Unintended correlations can degrade algorithm performance [189]
Scalability and integration challenges - Device-to-device variability and interconnect complexity [192] [194]

2. Spin Torque Nano-Oscillators (STNOs)

State-of-the-Art

STNOs are nanoscale devices capable of generating microwave signals through spin-transfer torque, where oscillator phase or frequency represents information for computational purposes [1].

Phase-binarized STNO arrays mapping oscillator phase to Ising spin states [1]
Macrospin-based analytical models implemented in Verilog-A for design and simulation [4]
Vortex-based STNOs offering enhanced stability [37] [260]
32x32 SHNO crossbars demonstrating mutual phase locking for pattern completion [38] [160]
Single vortex-STNO achieving equivalence of 400 neurons via time-multiplexing [38]

Research Gaps

Programmable and weighted coupling - Implementing controllable interactions in large arrays [1] [29]
Thermal management and scalability - High-frequency operation generates heat concerns [37] [260]
Modeling limitations - Macrospin models may not capture all physics; micromagnetics is computationally intensive [4]
Device-to-device variation - Impacts large-scale integration for probabilistic computing [39]

3. Spin-Orbit Torque (SOT) Devices

State-of-the-Art

SOT devices, particularly SOT-MTJs, offer fast switching speeds and high endurance, making them attractive for memory and unconventional computing applications [7].

"SOT-MTJs serve as highly tunable true random number generators, with switching probability precisely tunable by varying applied voltage pulse amplitude."

P-tunable TRNGs - Switching probability precisely controlled by voltage pulse amplitude [7]
Successful application in Bayesian network reasoning with simple training algorithms [7]
Medical diagnostic system implementation as random number generator and sampler [7]
32x32 SHNO crossbars demonstrating mutual synchronization for pattern completion [160]
Bias field-free auto-oscillation in SHNOs simplifying device architecture [173]

Research Gaps

Long-term reliability and endurance under probabilistic switching regimes [7] [9]
Uniformity in stochastic switching characteristics across large arrays
Reducing threshold currents and power consumption for miniaturized SHNOs [157] [184]
Efficient, scalable coupling schemes between SOT devices

4. Magnetic Ising Machines

State-of-the-Art

Magnetic Ising Machines are specialized hardware systems designed to find the ground state of an Ising model, equivalent to solving complex combinatorial optimization problems using various magnetic phenomena [12].

8-spin asynchronous probabilistic computer based on superparamagnetic tunnel junctions solved integer factorization [12]
Method to halve the number of physical interactions in fully connected Ising systems [10]
NTT's LASOLV™ Computing System integrating Ising machines with classical computers [13]
STNO-based Ising solvers operating at GHz frequencies [139]
Coherent Ising Machines showing scalability to 100,000 spins [179]

Research Gaps

Limited scalability in spin number and connectivity [10] [12]
Limited problem scope and mapping efficiency - Complex real-world problem mapping remains challenging [11]
Mapping destruction problem - Amplitude heterogeneity leading to unintended Ising instances [165]
Need for advanced annealing schedules beyond simple linear approaches [1] [73]

5. Domain-Wall Magnetic Devices

State-of-the-Art

Domain-Wall devices leverage controlled DW motion and pinning in nanostructures for novel computing, particularly neuromorphic and in-memory computing applications [15].

Breakthrough Performance

Energy consumption as low as 36.3 fJ/pulse, with overall energy <508 fJ/operation and firing rate up to 20 MHz [15].

DW-pMTJs with engineered pinning centers for controllable multi-level resistance states [15]
Novel sigmoid activation function generator based on DW-pMTJs with non-linearly distributed PCs [15]
Compatibility with standard CMOS and MRAM processes [15]
Reconfigurable magnetic inhibitors for DW logic and quantized magnetic DW synapses [16] [17]

Research Gaps

Reliable and deterministic control of DW motion and pinning at nanoscale
Scalability challenges to large, complex neural networks
Understanding mechanisms of DW motion under SOT and iDMI influence [15]
Endurance characterization of SOT-driven DW devices

6. Magnetic Skyrmion Devices

State-of-the-Art

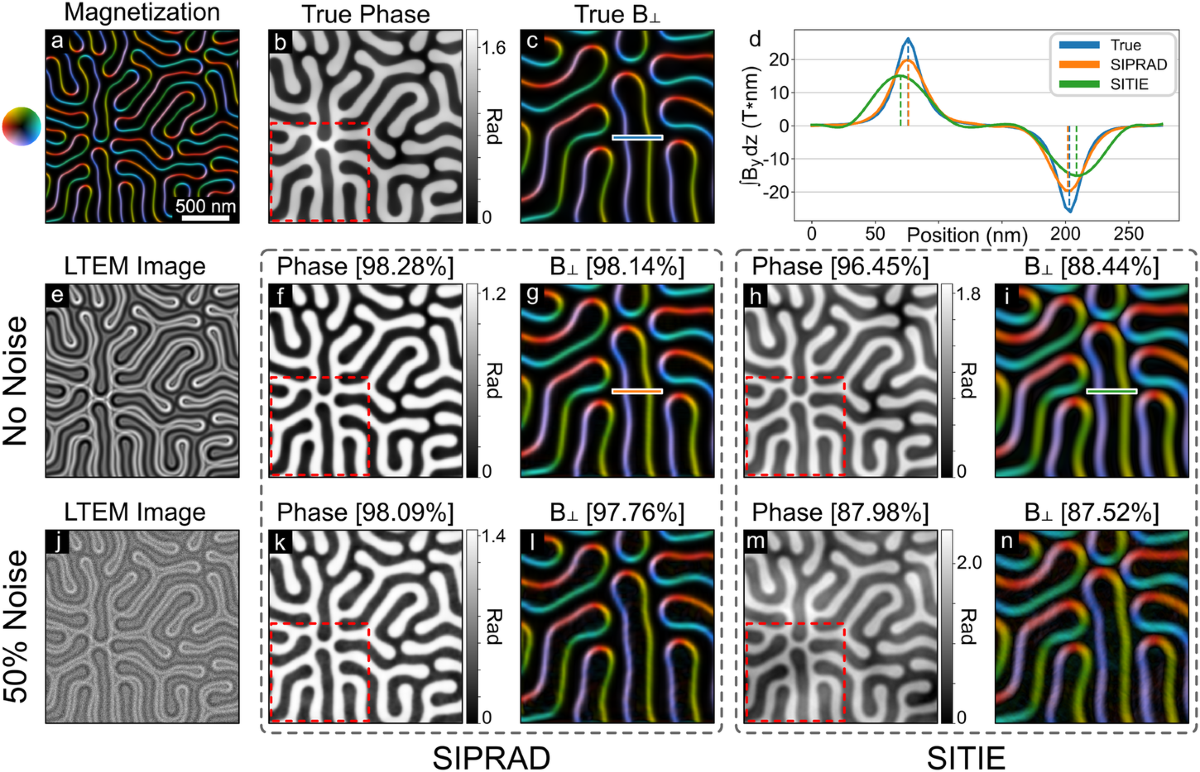

Magnetic skyrmions are topologically protected, nanoscale spin textures promising for unconventional computing, particularly in probabilistic and neuromorphic applications [19].

"The 'skyrmion reshuffler' leverages thermally driven dynamics of a 'skyrmion gas' confined in nanostructures, achieving energy-efficient (∼μW) and compact (∼μm²) probabilistic computing."

Skyrmion reshuffler for random bit sequence rearrangement [19]
Energy-efficient (∼μW) and compact (∼μm²) reshuffler devices [21]
Topological stability protecting against collapse and data loss [19]
Skyrmion fabrics implementing Bayesian inference engines by encoding probability distributions in nucleation density [160]

Research Gaps

Reliable generation, manipulation, and detection of individual skyrmions at room temperature
Stability and reproducibility of skyrmion properties across devices and arrays
Scalability challenges for large-scale computing systems
Efficient readout mechanisms without disturbing skyrmion integrity

7. p-bits (Probabilistic Bits)

State-of-the-Art

Probabilistic bits are fundamental to probabilistic computing, fluctuating stochastically between 0 and 1. Magnetic devices are well-suited for p-bits due to inherent stochasticity, fast dynamics, non-volatility, and low-power potential [126] [128].

Superparamagnetic tunnel junctions with nanosecond fluctuation timescales [126] [166]
Integration with CMOS for compact p-bit units with tunable output probability [155] [188]
Magnetic Probabilistic Computing platform implementing Bayesian Neural Network for CIFAR-10 classification [140]
Fully CMOS tent-map chaotic oscillator claiming robustness to PVT variations [136] [189]

Research Gaps

Robust and controllable stochasticity - Ensuring high-quality randomness across large arrays [136] [155]
Scalable integration and interconnection - Building large-scale p-computer architectures [154]
Algorithm and programming paradigm development - Mapping computational tasks onto probabilistic architectures [128]
Long-term reliability and endurance under continuous operation

8. Comparative Analysis and Future Outlook

Device Type	Key Mechanism	Primary AI Applications	Advantages	Key Challenges
Stochastic MTJs	Thermal fluctuations in nanomagnets; SOT, STT, VCMA tuning	P-bits, Boltzmann Machines, Bayesian Networks, Ising Machines	CMOS compatibility, non-volatility, tunable stochasticity, fast switching (µs)	Randomness quality/correlation, device uniformity, scalable integration
STNOs	Spin-transfer torque induced precession; phase/frequency dynamics	Ising Machines, Neuromorphic Computing, Pattern Recognition	GHz operation, non-linearity, synchronization capability, compact size	Programmable coupling, thermal management, scalable integration
SOT Devices	SOT-induced magnetization switching/precession; SHE, Rashba effect	TRNGs, Bayesian Networks, RBMs, Neuromorphic Computing	Fast switching, high endurance, separate read/write paths, field-free operation	Reliability/endurance, scalable integration, device uniformity
Magnetic Ising Machines	Collective dynamics of coupled magnetic elements	Combinatorial Optimization (MAX-CUT, TSP, etc.)	Potential for solving NP-hard problems, various physical implementations	Scalability (spins & connectivity), problem mapping efficiency
Domain-Wall Devices	Controlled motion and pinning of DWs; SOT-driven motion	Neuromorphic Computing (synapses, neurons), In-Memory Computing	Multi-level resistance states, low energy consumption (fJ/pulse)	Reliable DW motion/pinning control, scalability, endurance
Skyrmion Devices	Thermally driven dynamics of skyrmion ensembles; topological stability	Probabilistic Computing (reshufflers), Bayesian Inference	Topological stability, compact size, potential for low power	Reliable generation/manipulation/detection, stability/reproducibility
p-bits (General)	Fluctuation between 0 and 1 states based on tunable probability	Probabilistic algorithms (optimization, ML, Bayesian inference)	Harnesses intrinsic stochasticity, potential for energy efficiency	Controllable stochasticity, scalable integration, efficient algorithms

Performance Landscape Analysis

The comparative analysis reveals that sMTJs currently lead in p-bit implementation maturity, while STNOs and SOT devices show exceptional promise for high-frequency applications. Domain-wall devices demonstrate remarkable energy efficiency, and skyrmion-based approaches offer novel topological advantages for probabilistic computing.

9. Future Directions and System-Level Challenges

Cross-Cutting Research Gaps

System realization gap - Moving from device conceptualization to fully functional systems [223]
Cross-layer design necessity - Co-optimizing materials, devices, circuits, and algorithms
Interconnection strategies - Scalable communication for massive parallelism
Software ecosystem development - Algorithms tailored for probabilistic hardware

Strategic Future Directions

3D integration of magnetic devices with CMOS for enhanced density
New physical phenomena exploration - Antiferromagnetic spintronics, 2D magnetic materials
Algorithm-hardware co-design - Developing inherently probabilistic ML algorithms
Standardized benchmarking - Objective performance comparison frameworks

"The development of a unified and seamless integration of theoretical frameworks of spintronics, electronics, and computer science is identified as a key enabler yet to be developed, highlighting the need for multi-scale modeling and hardware-software co-design."

Critical Success Factors

Device Engineering

Improving uniformity, reliability, and controllability

System Integration

Scalable architectures and efficient interconnections

Algorithm Development

Probabilistic computing paradigms and applications
